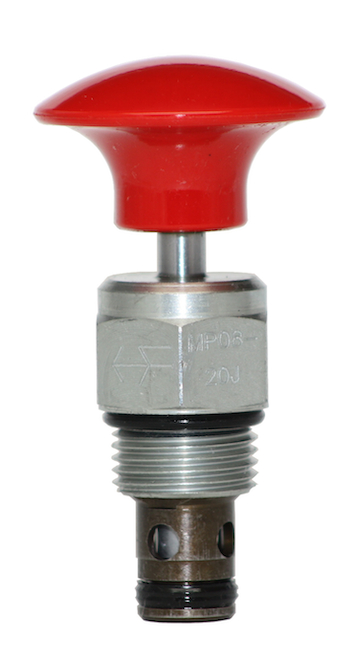

HydraForce Manual Pull Cartridge Valve MP08-20J-0-N

Product ID: MP08-20J-0-N

MFG: Hydra-Force

Available Stock: 335
Selected accessories will also be added to cart
$55.24
Quantity:
2-Way, Normally Closed
Size 08

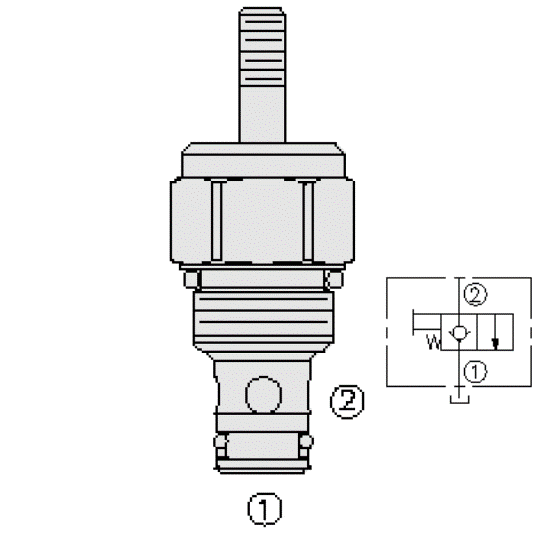

The MP08-20X is a 2-way, manual pull to shift, spring return, screw-in, cartridge style directional hydraulic valve.
In the neutral position the MP08-20X valve blocks flow from port 2 to 1 until it is manually actuated (pulled). When released the valve returns to its neutral position. The bias spring allows up to 180 psi [12,4 bar] back pressure at port 1 before the valve will open.

note: pressure at port 1 will directly act on the spring. Port 1 is intended to be a tank port only.
