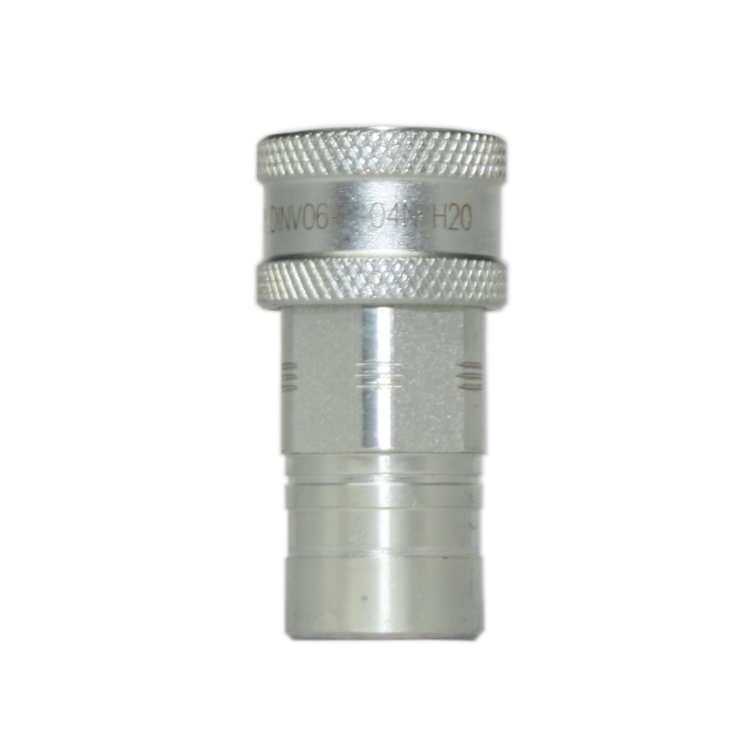

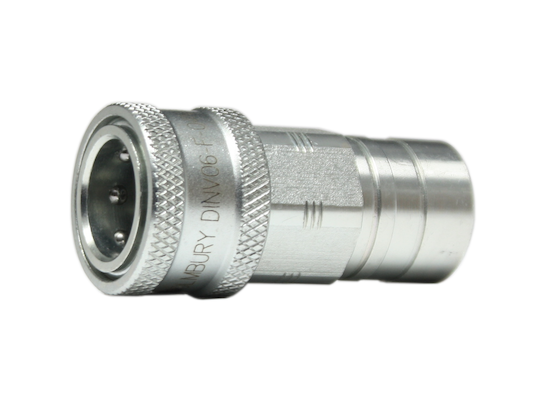

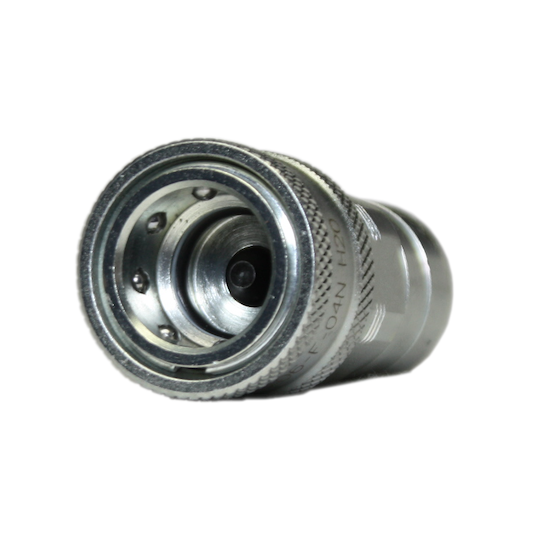

Holmbury AG-Style Poppet Valve, Pull Break Couplings DINV06-F-04N

Product ID: DINV06-F-04N

MFG: HOLMBURY

Available Stock: 86
Selected accessories will also be added to cart
$9.32
Quantity:
PV female 1/4" body 1/4" NPT port. General Purpose Couplings - AG-Style Ball Valve, Poppet Valve, Pull Break Couplings.
Holmbury DIN Series Couplings are interchangeable with Pioneer AG style couplings and are offered with a choice of ball or poppet valve for automatic flow shut off when disconnected. The ball valve should be used for compatibility in existing application. Poppet-style valve is recommended for all new applications. Widely used in agricultural, mobile, and industrial applications. The size 12 meets ISO 7241-1 type A design criteria and is interchangeable with Holmbury IA Series size 12 couplings.

CONSTRUCTION
Zinc plated carbon steel with highly stressed components carbonitrided. Nitrile seals with Teflon PTFE backing ring.

Series DIN
Body Size 1/4"
Type N/A
Material No
Thread Size 1/4"
Body Thread Size No
Thread Type NPTF
Thread Gender F
Flow Path No
Cracking Pressure No
Alt. Part #s DINV06F04N
