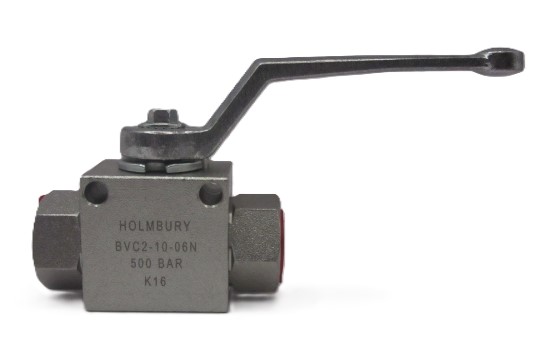

Holmbury 2 Way High Pressure Ball Valves BVC2-10-06N

Holmbury BVC2 Ball Valves are designed to suit a wide range of applications including mobile plant and industrial equipment. These valves should not be used as flow control valves and should therefore always be fully open or fully closed.

FEATURES

Full bore valves provide an unrestricted flow path for negligible pressure drop.
Floating ball on pre-compressed seals minimizes wear and provides an excellent seal at positive and negative pressures.
Operating temperature range: -20°C (-4°F) to 100°C (212°F).
Open to close in 1/4 turn (90°).
Offset handles are incorporated to provide good clearance for the operators hands.

MATERIALS

Body and port adaptor are Trivalent plated steel (38SMn PB 10).
Handle - steel forging, Trivalent plated.
Ball - carbon steel.
Ball seals - DELRIN (polyacetalic resin).
Shaft seal - nitrile.

Also available in AISI 316 stainless steel construction and Viton Seals (BVS) are available for corrosive environments or for use with corrosive fluids.

Series BV-2
Body Size No
Type No
Material Carbon Steel
Thread Size No
Body Thread Size 3/8"
Thread Type NPT
Thread Gender No
Flow Path 2 Way
Cracking Pressure No
Alt. Part #s No
